Routing by HOP List

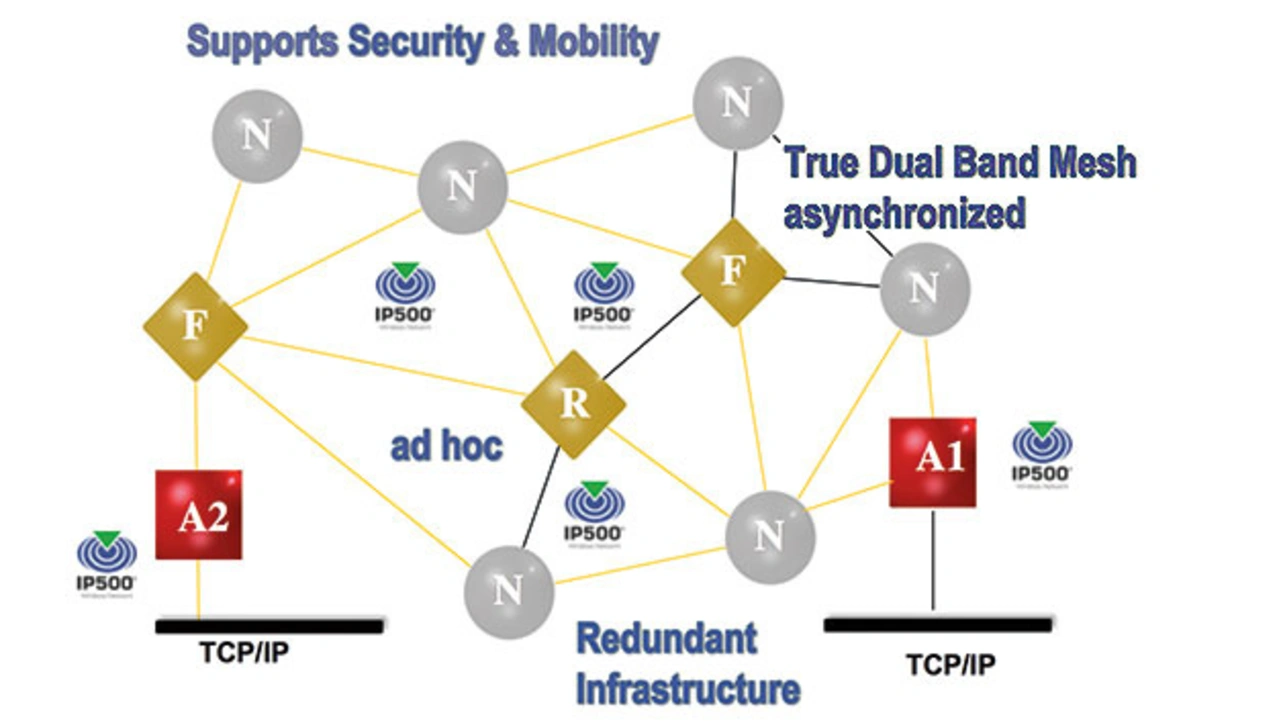

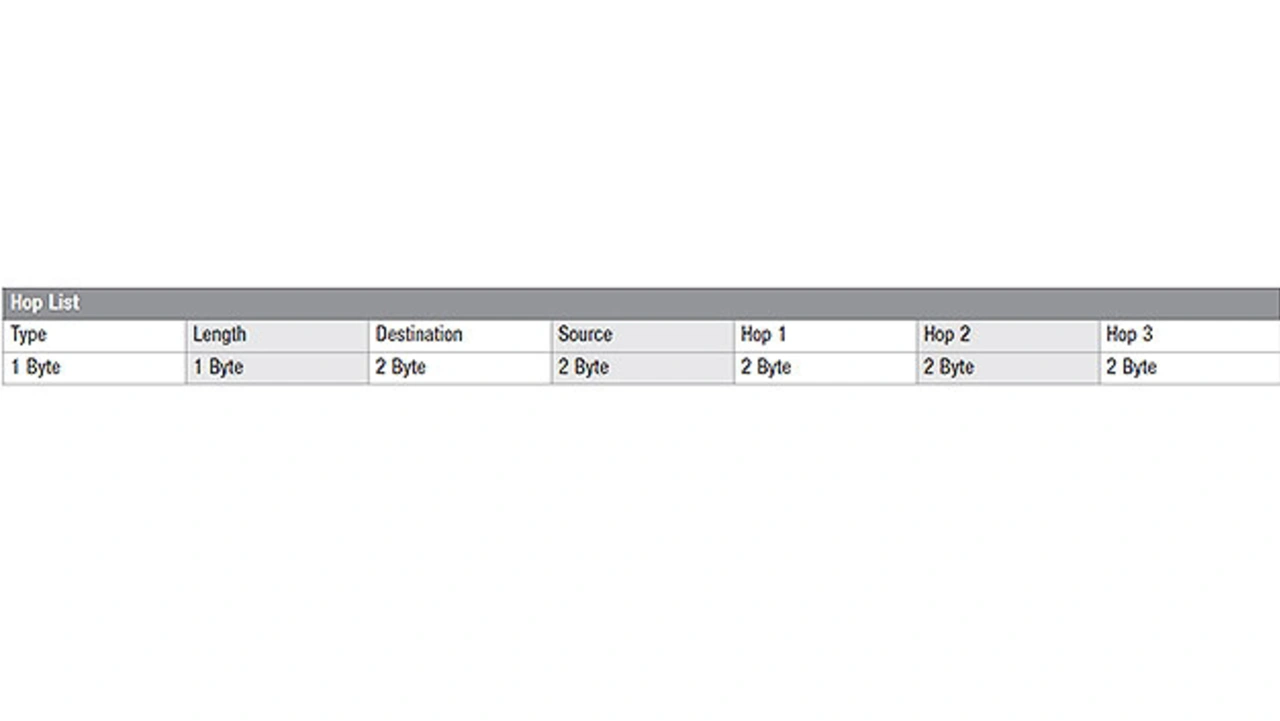

The NWK header (Figure 8) defines the »Hop List«, a given route through the network (Figure 9). The message from the application is organized in the packet and routed through the network according to the hop list — in dual band and via the switching nodes of the meshed network. The hop list delivers the next hop thanks to the asynchronous meshed network with minimal computing effort – an important skill that ensures low latency and low energy consumption of the individual network nodes (sensors).

The node sending a message determines the hop list for the data packet from its routing table by forming the shortest route. This process offers the end user a self-healing, self-configuring mesh network with the lowest latency.

All messages of the IP500 application layer are sent in both directions between the nodes and the gateway, which is why each node and the gateway knows the route without any computing effort. Additionally the most recently received messages are also stored in the gateway.

The use of alternative routes in the meshed network, together with the redundancy at the frequency level, ensures high reliability and low latency when interference occurs, which has been confirmed by VdS as the basis for pre-conformity with the European standards [2].

Security and Encryption in the IP500 Network

The calculation of the AES128 key for symmetrical encryption and decryption of the message is based on the sequence number of the message and a master key, which is carried out by an asymmetric ECDH method (Elliptic-curve Diffie-Hellman) between each individual node and the Gateway. End-to-end encryption ensures that the messages cannot be intercepted or forged by forwarding nodes. Using the AES128 key once for a single message increases the security of the IP500 network.
